GREATER CAIRO METRO LINE 4
The Greater Cairo Metro Line 4 will be constructed in Two Phases and will run from Hadaek El Ashgar Station in West Cairo to New Cairo, up-to the south of the International Airport. The overall distance will be approximately 43km. Phase 1 will run for 13km underground tunnels from Center of Cairo to Giza pyramid complex in the southwest, serving a total of 12 stations.
NAT "National Authority for Tunnels"
2020 - 2026
391,852,400 USD
GREATER CAIRO METRO LINE 4
The Greater Cairo Metro Line 4 will be constructed in Two Phases and
will run from Hadaek El Ashgar Station in West Cairo to New Cairo, up-to the south of the International Airport.
The overall distance will be approximately 43km.
Phase 1 will run for 13km underground tunnels from Center of Cairo to Giza pyramid complex in the southwest, serving a total of 12 stations.
![](https://www.concord-ec.com/wp-content/uploads/2024/03/metro3.jpg)
![](https://www.concord-ec.com/wp-content/uploads/2024/03/metro2.jpg)
The new route is expected to be heavily used by tourists, as it will also
serve the New Grand Egyptian Museum. It extends from Hadayek Al Ashgar to Al Mesaha.
![](https://www.concord-ec.com/wp-content/uploads/2024/03/Screenshot-2024-03-26-at-8.33.28 PM.png)
![SLURRY AND GUIDE WALL FOR MAIN BOXES](https://www.concord-ec.com/wp-content/uploads/2024/03/metro1.jpg)
PROJECT’S COMPONENTS:

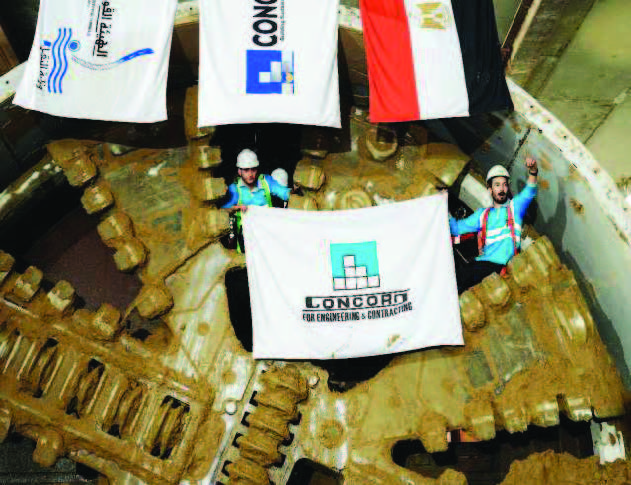

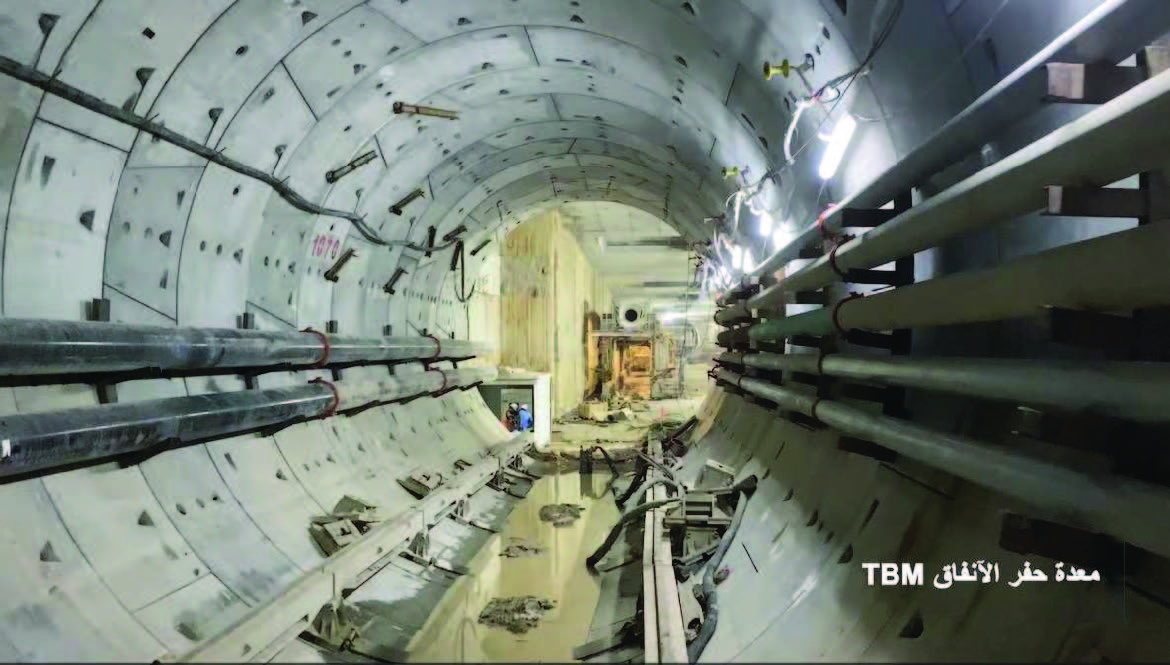

• 2 Tunnels – 13 km (each) executed by 4 Tunnel Boring Machines – Diam. 6.7 m.
• 11 under-ground stations.
• 1 Elevated station.
• Diaphragm walls: 435,000 m2
• Earthworks: 25.2 Million m3
• Concrete Works: 890,000 m3
• Reinforcement Steel: 146,000 Tons
• Concrete Rings: 19,588 m
![DIAPHRAGM WALL WORKS](https://www.concord-ec.com/wp-content/uploads/2024/03/Screenshot-2024-03-26-at-8.36.33 PM.png)
