LRT “10TH OF RAMADAN –NEW ADMINISTRATIVE CITY
The project consists of 12 stations with total length of 70 km and a maximum speed of 120 km/h which connects between the 10th of Ramadan City to the New Capital City.
NAT "National Authority for Tunnels"
2020 - 2023
177,600,000 USD
LRT “10TH OF RAMADAN –NEW ADMINISTRATIVE CITY
The project consists of 12 stations with total length of 70 km and a maximum speed of 120 km/h which connects between the 10th of
Ramadan City to the New Capital City.
Concord scope of work includes the
execution of New Capital Bridges, Shorouk station, Badr station, Traction Substations and Badr tunnel including all Architectural, Civil and Electro-mechanical works.

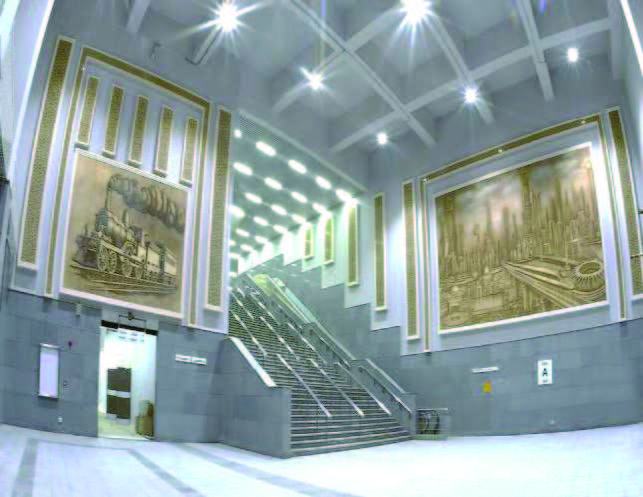

SHOROUK STATION
It is On Grade Station Type, contains Main station building 5800m2 built-up area, external Auxiliary building 297m2, 2 zones of Parking with total area around (39,200m2).
The Station is considered as side platform type, as the track area locate in the middle and two platforms locate at both sides of track area.
Badr Station
It is Grade Station Type and contains a main station building of 10,500m2 built-up area, an external Auxiliary building of 297m2, and 2 zones of Parking with a total area of around (64,800m2).
The Station is considered a side platform type, as the track area is located in the middle and two platforms are located on both sides of the track area.
BADR TUNNEL
Tunnel Description:
• Open Cut method including 64,000 m3 of excavation and backfill.
• Excavation depth up-to 10m.
• Clear Height up-to 8m, width 10m.
• 460-meter length with 285m Open U section and 175m Closed Box section.

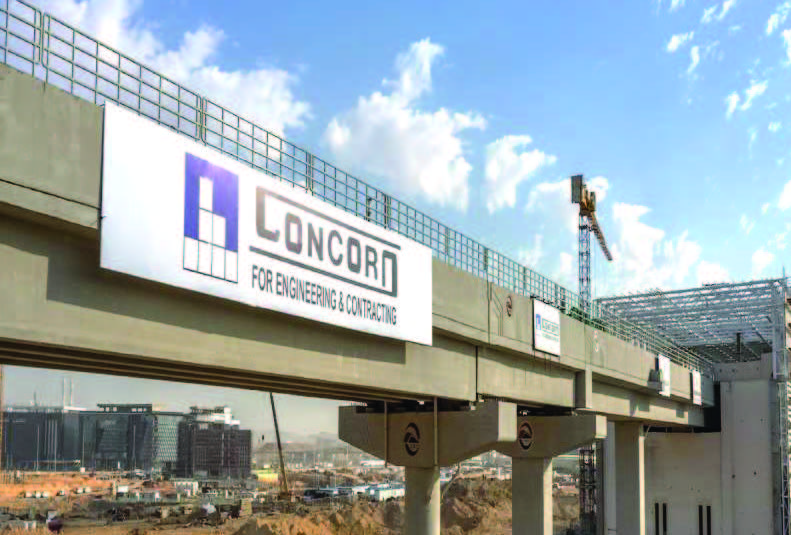

NEW CAPITAL BRIDGES
New Capital 01 Viaduct L16H1
• Viaduct Bridge allows LRT to Pass over Mohamed ben Zayed North road in the new administrative capital.
• The total length of bridge is 580 meters and consist of 20 axis
New Capital 03 Viaduct L16H3
• The total length of bridge is 740 meters and consist of 21 axis.
New Capital 04 Viaduct 3L01H:
• The total Length of bridge is 1472 meters and consists of 46 Axis.
